Case ejector system for RCBS Rockchucker and JR single stage presses
This system ejects your cases for you, allowing you to leave your right hand on the press lever and your left hand dedicated to feeding brass. It speeds up your single stage reloading significantly. Kit includes: Base plate, Ejection spring assembly, discharge ramp and 2 bins.

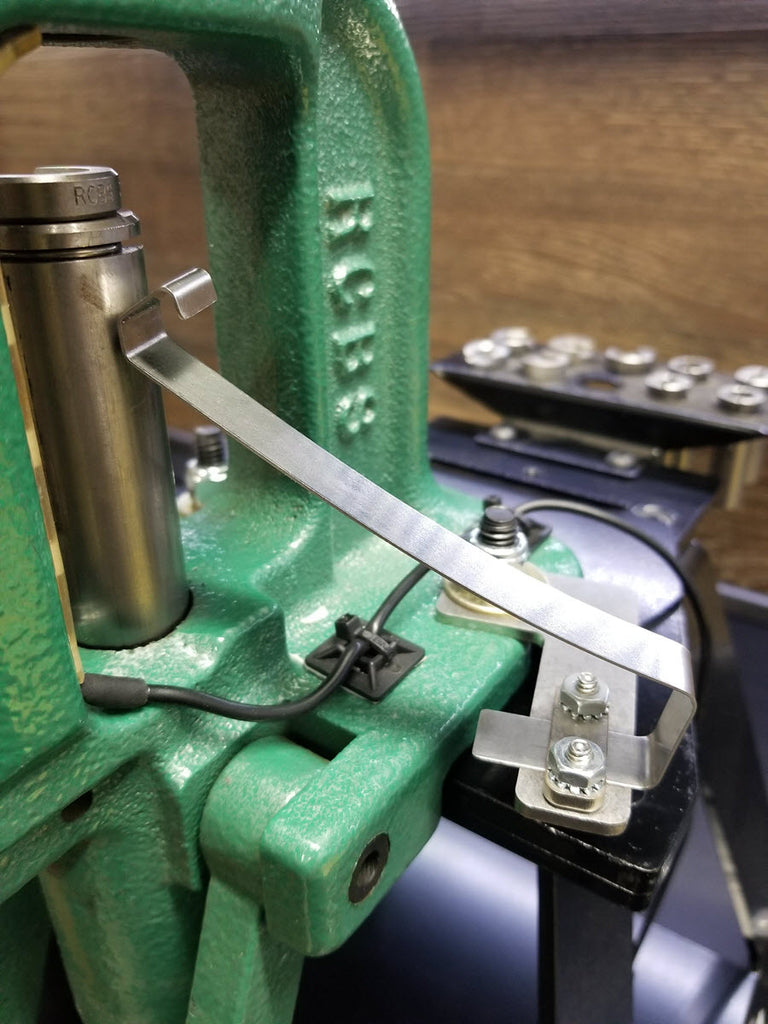

The case ejector system is designed for versatility and can be installed directly to your bench-top or installed on any InLine Fabrication Ultramount press riser. The adjustable ejector plate attaches via your rightside press mounting bolt and stays compact to the press.
This ejector kit fits the RCBS IV Supreme and the older RCBS RC1,2 as well as the RCBS JR, 2 & 3. Although, on the RC 1,2 & JR,2 & 3 the factory primer dish needs to be trimmed where the ramp passes by. On the Rockchucker IV/Supreme, that issue can be remedied with this lil guy (Here) And for the older vintage RC 1,2 (Here)
The base plate also includes die storage for (3) 7\8ths bodied dies OR 1 3/16 holes IF you are using the Hornady Lock n Load quick change bushings.(Only useable if your press is mounted on an Ultramount to provide the clearance underneath.) (Select from the dropdown list above.)
This ejection system works perfectly with our Quick change system. (Here)
Note: Shown with InLine Fab bin barriers (not included) but available (Here)
Also available: Base plate with larger die storage holes if you are using the Hornady quick change bushings. (Select from the drop down list.)
The case ejector system is available for the Redding T-7 turret. (Here)
Price includes priority USPS shipping. (1 to 3 day service)
InLIne Fabrication Youtube video.
Very nice Youtube vid of InLine Fabrication RCBS gear from a customer. Have a look:
